IP69K Computer Enclosure

Safely Install IT Workstations In Harsh Locations

Protect your critical IT systems from high-pressure, high-temperature cleaning. The IP69K computer enclosure houses a small-form-factor PC and 24" monitor in a robust, watertight body. The IP69K rating lets you clean the enclosure to strict hygiene standards while maximizing the longevity of the enclosed computer.

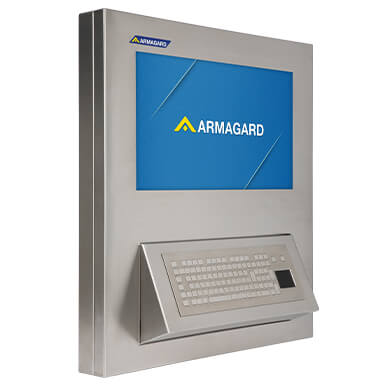

Armagard IP69K computer enclosure with installed 24-inch monitor

Click thumbnails for larger images:

Request prices

Ideal For:

  • Food and Beverage Processing
  • Pharmaceutical Applications
  • Chemical Manufacturing
  • Washdown Areas
  • Medical Settings

At A Glance:

Size (HxWxD) inches:
30.3 x 27.5 x 9.3
Monitor Size:
24" (16:9)
VESA:
100 x 100
IP Rating:
IP69K
Material:
316 Stainless Steel
Keyboard:
Integrated Keyboard with Touch Pad
Mounting:
Wall (Flush or with Optional Brackets)
Product Code:
SWS-100-US

Maximize Production Uptime With The IP69K Computer Enclosure

Improve uptime and output by housing your critical systems in the IP69K computer enclosure. Your shop-floor PCs run 24/7 in harsh locations, and staff get a fast workflow with computers directly on your production line. The 316 stainless-steel body is antibacterial and corrosion resistant, for maximum plant hygiene.

An expected 10-year lifespan means you can use a single enclosure to protect successive computers, making it highly cost-effective. Enjoy peace of mind with a five-year warranty and lifetime support. Armagard has over 30 years' experience working with big-name food and pharmaceutical brands, like Tyson Foods, JBS, Nestlé, Cargill, and J.M. Smucker.

For full specifications & prices — Contact Us Now!

Features And Benefits

Summary of the features and benefits to consider when choosing an Armagard IP69K computer enclosure.
Features Benefits
IP69K Rating Get maximum hygiene in your plant. The IP69K rating lets you safely clean the enclosure at pressures from 80 to 100 bar/1,160 to 1,450 PSI, with a flow rate of 14 to 16 l/min, and temperatures reaching up to 176°F.
316 Stainless Steel Ideal for industries governed by strict hygiene standards. The food-grade body is antibacterial and corrosion resistant, for safe daily cleaning and peace of mind about shop-floor cleanliness.
24" Widescreen Window Made from Shatterproof Polycarbonate Install the VESA-compatible, 24" monitor of your choice. The polycarbonate window is 20x stronger than glass. It won't shard into tiny pieces in the unlikely event of a breakage, which saves your production line from contamination. To include a 24" display with your order, talk to your account manager.
Internal Fan Get maximum PC lifespan in warm environments. The IP69K computer enclosure has a recirculating fan that prevents heat build-up.
Surge-Protected 110v Sockets Built-in protection from electrical spikes maximizes component lifespan and reliability.
Easy Wall Mounting and Slimline Design Install the enclosure flush to a wall or with optional mounting brackets. The low-profile design lets you position the enclosure in the ideal location for your workers.
IP69K Key-Operated Locks Hygiene-rated locks prevent unauthorized access and give your PC IP69K protection when the door is locked.
For full specifications & prices — Contact Us Now!

Specifications and Guarantees

All Armagard enclosures are built in accordance with international NEMA and European IP standards, guaranteeing protection from liquids and particulates.

Why Armagard?

  • In-house dedicated design engineering
  • Over 30 years of enclosure industry experience
  • Over 100,000 enclosures protect manufacturing and digital signage equipment

Five-year warranty

  • Five year warranty across all enclosure specific mechanical and electrical components

Customer service

  • Lifelong technical assistance
  • Responsive and timely after-sales support
  • Knowledgeable and supportive personnel
