Compact Waterproof Enclosure

NEMA 4 waterproof computer enclosure for TFT LCD screens and thin-client PCs.

Armagard’s Compact Waterproof Enclosure can house thin-client PCs and TFT LCD screens up to 17 inches. Designed for heavy washdown locations, the enclosure is fitted with a membrane keyboard and mouse and easily mounted on either a wall or a stand.

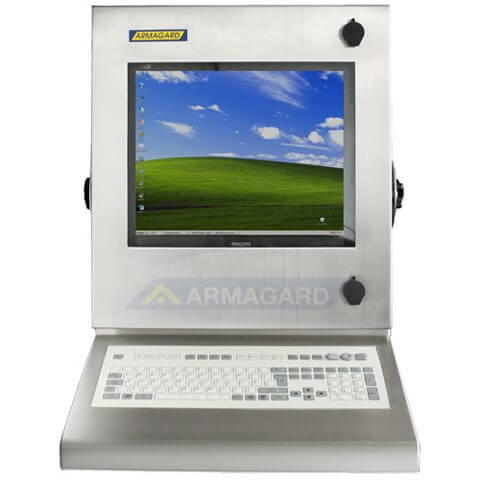

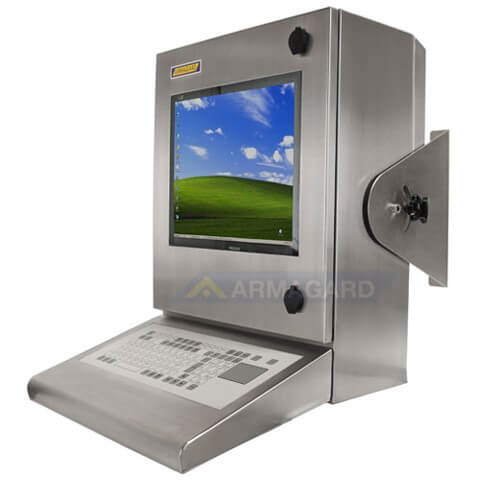

Compact Waterproof Enclosure SENC-300

Click thumbnails for larger images:

Request prices

Our Compact Waterproof Enclosure Is Ideal For:

  • Food manufacturing
  • Pharmaceutical applications
  • Medical applications
  • Laboratories
  • Washdown environments

Quick View: (size does not include keyboard)

Size (HxWxD)Inches:
25 x 19.2 x 8.7
Material:
Stainless Steel
Screen Size:
up to 17 inch TFT LCD
Keyboard/mouse:
Integrated
Mounting:
Wall mount on use on a stand
NEMA rating:
NEMA 4
Product Code:
SENC-300-US

The streamlined design of the Compact Waterproof Enclosure is perfect for thin-client PC and TFT LCD screens. It’s waterproof to NEMA 4 and manufactured from food grade stainless steel, making it ideal for food manufacturing or washdown environments.

Features & Benefits:

Our Compact Waterproof Enclosure will protect your thin-client PCs and screens from water, dust, oil, grease, physical impacts, and theft. A perfect space-saving solution, the Compact Waterproof Enclosure is already the first choice of leading food companies throughout Europe.

Here are the benefits and features to consider when choosing an Armagard Compact Waterproof Enclosure.
Features Benefits
Manufactured from food grade stainless steel Naturally resistant to corrosion and staining, food grade stainless steel is low maintenance and antibacterial, making it perfect for wet and/or food preparation areas.
Shatterproof polycarbonate window Durable screen protection reduces the risk of breakage and contamination to your production line.
Universal VESA mount Mount almost any LCD screen from major manufacturers.
Fits most thin-client computers Add the computer system of your choice instead of buying costly dedicated machines.
Water-repellent seals Fitted as standard to the door, locks, and window to prevent damage to enclosed equipment during washdown.
Surge-protected four way mains distribution Extends the lifespan of enclosed equipment by protecting against power surges and electrical spikes.

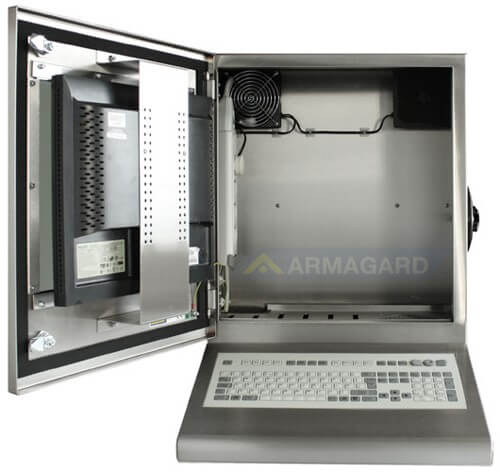

Plenum Chamber cooling system Reduces strain on enclosed components and extends lifespan by maintaining a uniform temperature with our unique (patent applied for) cooling system. Maintains the NEMA 4 rating while cooling the interior.
Multiple options for mounting Mount on the wall or a stand for user ease and comfort.
Customizable Add a membrane keyboard with a trackball mouse, or a touch screen and keyboard.
Safe and secure stainless steel quarter turn locks Maintain a tight waterproof seal around the enclosure doors. For areas where vandalism and theft are a concern, we offer even more secure lock options.
For full specifications & prices — Contact Us Now!

Specifications & Guarantees:

All Armagard enclosures are protected from liquids and particulate matter and are constructed according to International NEMA standards as well as European IP standards.

Why Armagard?

  • In-house dedicated design engineering
  • Over 30 years of enclosure industry experience
  • Over 100,000 enclosures protect manufacturing and digital signage equipment

Five-year warranty

  • Five year warranty across all enclosure specific mechanical and electrical components

Customer service

  • Lifelong technical assistance
  • Responsive and timely after-sales support
  • Knowledgeable and supportive personnel

Specifications:

Height:
25 inches
Width
19.2 inches
Depth:
8.7 inches
NEMA rating:
NEMA 4
Product Code:
SENC-300-US
