Washdown HMI Workstation

Install 24" Touch Screens In Wet Locations and Hygienic Industries

Boost productivity by installing reliable touch screens on your shop floor. The washdown HMI workstation (Human-Machine Interface) allows you to position computers exactly where operators need them, even in wet locations. The NEMA 4/4X enclosure protects a computer and integrated, 24" widescreen monitor from jet washing. The 316 stainless-steel body helps you comply with sanitation regulations.

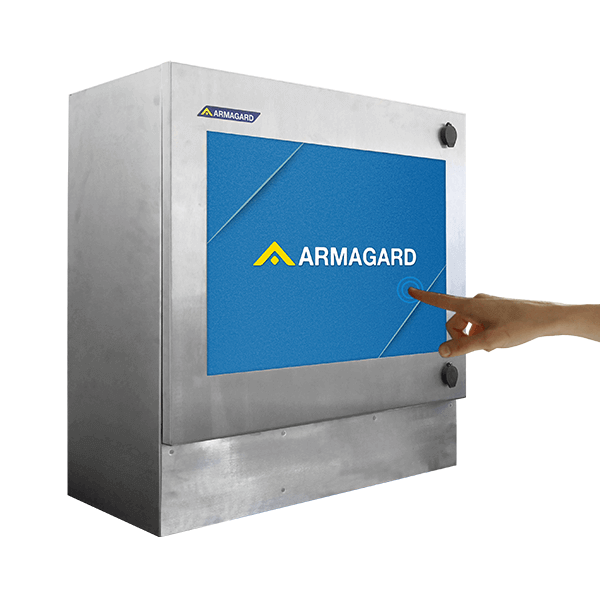

Washdown HMI workstation right-facing front view

Click thumbnails for larger images:

Request prices

Ideal For:

  • Food and Beverage Processing
  • Pharmaceutical Applications
  • Chemical Manufacturing
  • Petrochemical Plants
  • Waste Treatment

At A Glance:

Screen Size:
24" Widescreen
Size in Inches (H×W×D):
26.9 × 27.2 × 12
Material:
316 Stainless Steel
NEMA Rating:
NEMA 4/4X
Mounting:
Wall, Stand, or Desk
Keyboard/Mouse:
Optional Keyboard Shelf, Drawer, or Integrated NEMA 4 Keyboard
Product Code:
SENC-550-US

Protect Manufacturing Uptime With The Washdown HMI Workstation

The waterproof touch screen enclosure protects your critical systems in wet environments. You benefit from improved computer reliability and maximum production uptime. Install the small computer tower of your choice and access it at any time. An expected 10-year lifespan makes the enclosure highly cost-effective, as you can use it to protect multiple computers over several years.

Armagard enclosures protect shop-floor equipment for some of the biggest food brands in the U.S, including Smithfield Foods, Tyson Foods, and Cargill. The washdown HMI workstation comes with a five-year warranty and lifetime support. Install touch screens with confidence in wet locations and clean industries. Also available as a non-touch, NEMA 4/4X computer enclosure.

Features And Benefits

Features Benefits

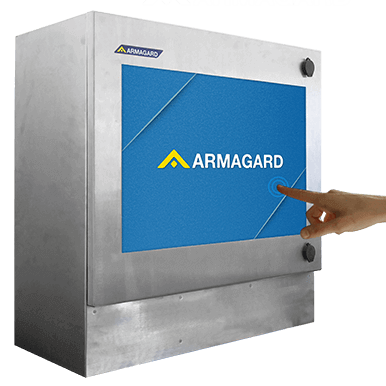

Integrated, 24" Touch Screen The widescreen touch monitor works through gloves, giving operators a streamlined workflow.
NEMA 4/4X Rating Safely install touch screen computers in wet locations. The NEMA 4/4X cabinet protects enclosed hardware from daily jet washing. Ideal for food and pharmaceutical applications.
Food-Grade (316) Stainless Steel The washdown HMI workstation has a food-grade construction. Use it with confidence in areas governed by strict sanitation standards.

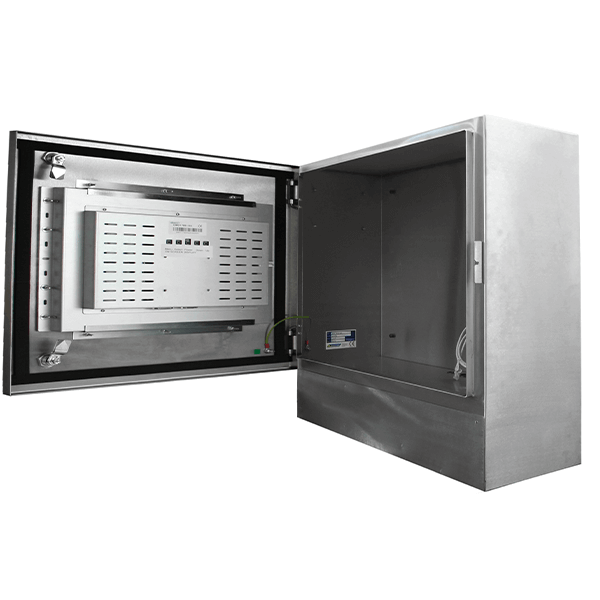

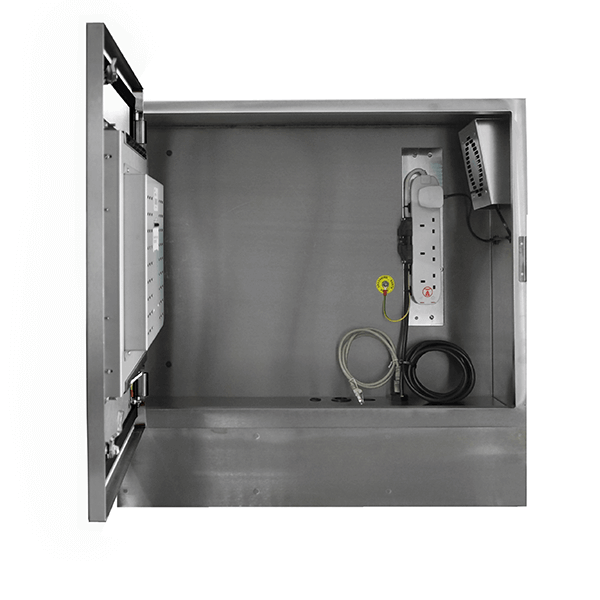

Easy Access to Enclosed Hardware Access the computer and screen at any time. Unlike a sealed panel PC, the SENC-550 allows you to remove or upgrade your hardware whenever you want, without a specialist engineer.
Internal Climate Controls A fan maintains a stable internal temperature, ensuring the computer and screen operate reliably and efficiently.
Optional Keyboard Options Create the most optimized workstation for your operators. Request a keyboard shelf, drawer, or integrated keyboard with NEMA 4 rating and trackpad.
Wall, Stand, or Desk Mounting Position the washdown touch screen enclosure in the ideal location on your manufacturing floor.

All Armagard enclosures are built in accordance with International NEMA and European IP standards, guaranteeing protection from liquids and particulates.

Specifications & Guarantees:

Why Armagard?

  • In-house dedicated design engineering
  • Over 30 years of enclosure industry experience
  • Over 100,000 enclosures protect manufacturing and digital signage equipment

Five-year warranty

  • Five year warranty across all enclosure specific mechanical and electrical components

Customer service

  • Lifelong technical assistance
  • Responsive and timely after-sales support
  • Knowledgeable and supportive personnel
