Large Format QAD Redzone Software TV Case

Protect KPI Displays in Daily Washdown Facilities

Confidently install QAD Redzone software above your production floor with sanitary large-format 55" TV enclosures. Water and dust proof to NEMA 4/4X, and manufactured from 316 (food-grade) stainless steel for corrosion-resistance and antibacterial properties. A Redzone TV enclosure is suitable for daily washdown to ensure hygiene standards, and empower frontline operators with the latest KPI information. Available in various sizes, the enclosure provides an ideal solution for protecting multiple Redzone software displays.

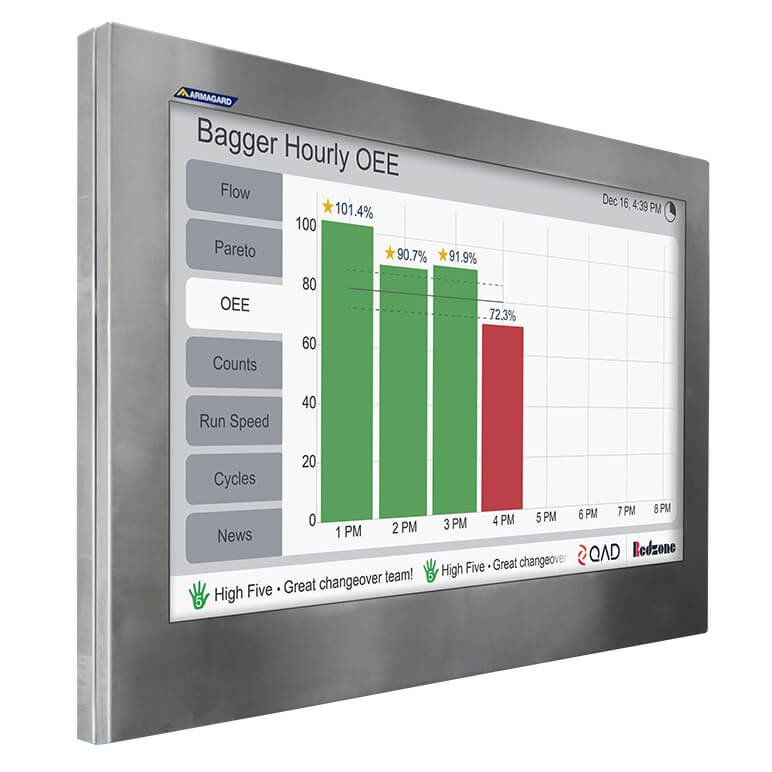

Redzone software large-format 55" TV enclosure for washdown applications

Click thumbnails for larger images:

Request prices

Ideal For:

  • Food and Beverage Processing
  • Pharmaceutical Applications
  • Chemical Manufacturing
  • Washdown Areas
  • Medical Settings

At A Glance:

Screen Size:

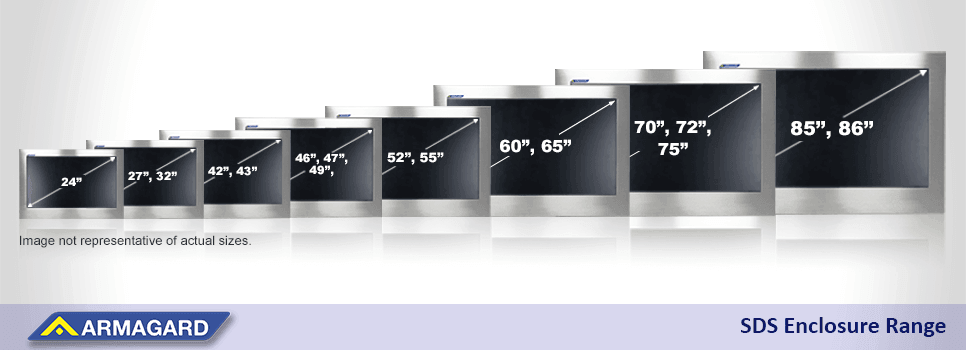

55", 32", 43", 47", 49", 50", 52", 60", 65", 75", 85" & 86"
IP Rating:
NEMA 4/4X
Material:
316 Stainless Steel
Mounting:
Wall, Ceiling or Stand
Product Code:
SDS18-55-W-L

QAD Redzone Software TV Enclosure Jet Wash & Components:

Quality 316 Stainless Steel Enclosure for QAD Redzone Software Displays

The large-format stainless steel 55" TV enclosure with a QAD Redzone software display is a reliable and versatile solution for sanitary environments. Designed to augment Redzone food safety software, the enclosure supports installation of a 55" VESA-ready screen and an Apple TV media player. Easy access allows for display upgrades or removal, and eliminates the need for a specialized engineer. Internal temperature controls ensure safe and efficient TV operation, while versatile mounting options provide optimal display placement.

Warrantied for five years but with an expected lifespan of 10, an SDS enclosure presents a low total cost-of-ownership, capable of protecting multiple screens over several years. Armagard enclosures are trusted by leading food brands, including Cargill, Tyson Foods, and Smithfield Foods, to safeguard shop-floor equipment. Additionally, use a ‘NEMA 4X hygienic tablet enclosure’ to stream Redzone content from an iOS handheld device straight to an Apple TV, to communicate the latest manufacturing information.

For full specifications & prices — Contact Us Now!

Features And Benefits:

Summary of the features and benefits to consider when choosing an Armagard Redzone Software TV Case.
Features Benefits
NEMA 4/4X The NEMA 4/4X rating protects the enclosed large-format display from hose directed water, dust ingress, and industrial residues.
Food-Grade 316 Stainless-Steel The 316 stainless-steel body is corrosion-resistant and antibacterial, making it suitable for daily washdowns using high-level disinfectant agents.
Shatterproof Polycarbonate Window The polycarbonate window is 20 times stronger than glass, providing robust protection for your display against physical damage. In the unlikely event of a breakage, it won’t shatter into tiny pieces, preventing production line contamination and potential shutdowns.
Internal Climate Controls The advanced controller board efficiently manages the internal fans and heaters, for safe and effective screen management across a broad temperature range from -22°F to 95°F.
VESA Compatibility and Screen Accessibility Use food safety QAD RedZone software on the slimline VESA-compatible screen of your choice. Its design provides easy display access, enabling you to remove or upgrade your TV at any time without needing a specialist engineer.
Versatile Mounting Install a large-format RedZone software TV case in the ideal location. Use wall, ceiling (flush or with optional brackets) or stand mounting for maximum visibility in your plant.
Key-Operated Locks with Rubber Caps Quarter-turn locks safeguard your display from unauthorized access and ensure the enclosure door remains sealed during high-pressure washdowns.
Surge-Protected 110v Sockets Get maximum display lifespan thanks to surge-protected sockets. The enclosure has an internal four-gang extension available with US, UK, EU, FR or CH sockets.
For full specifications & prices — Contact Us Now!

Specifications and Guarantees:

All Armagard enclosures are built in accordance with international NEMA and European IP standards, guaranteeing protection from liquids and particulates.

Why Armagard?

  • In-house dedicated design engineering
  • Over 30 years of enclosure industry experience
  • Over 100,000 enclosures protect manufacturing and digital signage equipment

Five-year warranty

  • Five year warranty across all enclosure specific mechanical and electrical components

Customer service

  • Lifelong technical assistance
  • Responsive and timely after-sales support
  • Knowledgeable and supportive personnel
5 year warranty, TNT delivery, DSV delivery, CE, and RoHS logos
